CS128 Computerized Frame Moved Lock Stitch Comforter and Mattresses Quilting Machine
Basic Info
Model No.: CS128
Product Description
Model NO.: CS128 Machine Model: CS128-3 Machine Weight: 4000kg Power: 380V Runing Rate: 200-500 Rpm Rating Power: 6.2kw Transport Package: Standard Export Packing Origin: China Certification: CE, ISO9001: 2000 Machine Size: 550*110*160 Cm Needle Distance: 2.54cm Stroke: 308.8mm Needle Model: 16/19 Trademark: Chi Shing Specification: ISO9000-2000; CE; SGS HS Code: 8452 CS128-3 Lock Stich Quilting Machie For Making Beddings
1. D: Digital control; S: Small shuttle (HQ7 Japaneseshuttle )
2.128": 128inch width (3251mm)
3.2: Two needle row

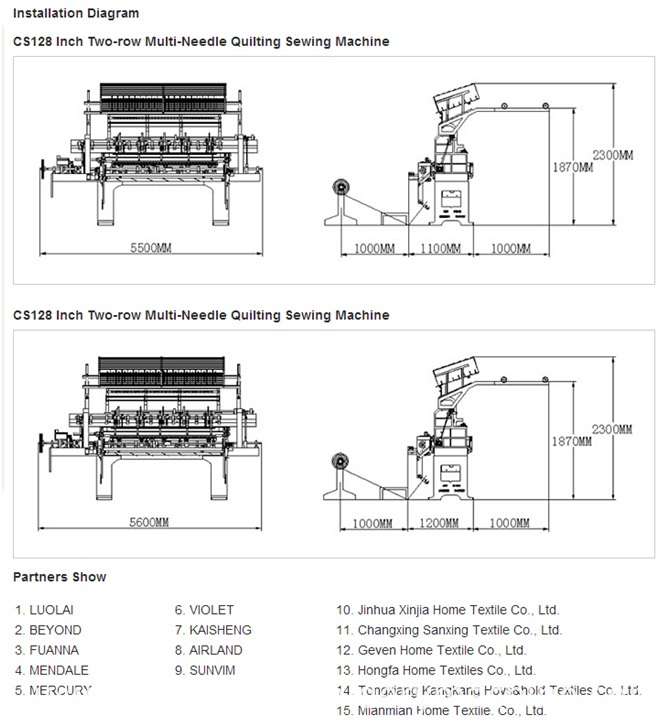

4. Overall dimentions: 5500*1100*1600mm
5: Weight: 4000kg
6: Running speed: 200-500r/m
7: Needle distance: 25.4mm
8. Rating power: 6.2kw
9. Thickness: ≤ 30mm
10. Max. Pattern size: 6inch by 6inch

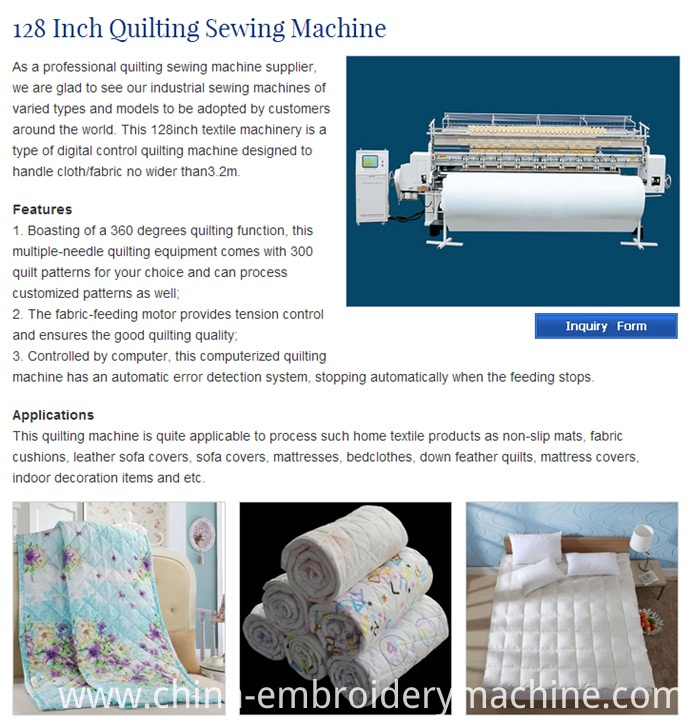

Applications:
Quilting Machine is widely used for quilting high-quality Mattress panel, Quilt covers, household ornaments, Clothing, Handbag, Glove, Bedding, Comforters, Seat covers, Sleeping bag, etc.
Main features: This quilting machine Adopting digital control program, speed can be changed digitally.
Detailed Introduction of Machine:



Functions & Features:
*Using Panasonic servo motor (optional), saddles and rollers driven by Panasonic servo devices.
*The revolution of the spindle controlled by Panasonic frequency conversion control devices.
* Large number of built-in quilting patterns for your choice, patterns can be changed in a few second.
*Easy and quick make new designs(360degree, and 180 degree, patterns are available. )
*Available features such as high rigidity machine body, perfect protecting equipment and steady going control system, high speed of running, low noise and precise quilting.
*Running state detecting and inditating in order to show how the machine works.
*Production management function, easy for checking the production cost.
*USB interface.
*Using pattern of software 20064
*CAD drawing method to ensure the precision of pattern and facilitate the operation.
*Tack and jump function included
*Function of pattern compensation, an effective solution to the distortion of patterns when quilting thick materials.
*Simulation display of quilting.
*Automatic needle raising, location brake system and CNC speed adjustment.
*Needle bar and pressing block take the double rocks device.
*All faults tips for servo motor system and transducer, which is eminilate problems.
*Particular pattern-editing program to ensure the precision of pattern and facilitate the operation.
Materials:
Chishing:
Use Japan imported steel (The price difference of the steel imported and demestic is about 2times ) The life of the machine depends on it.
Other China factory:
Use domestic steel
Parts:
ChiShing:
We have own accessories produce workshop so that the quality can be controlled.
Other China factory: Who purchased accessories.
Function:
Chishing:
The function which they have our machine do have.
The digital control quilting machine itselft has the function thread break detector
Other China factory:
The function is charged extra.
Accessories and Spare Parts:
Chishing:
Come with important parts like the bearing etc. And the quality of the shuttle etc are different. We use imported one the price domestic and imported is two times. Also The machine itselt.
Such as the pressing board we use 3mm or 5mm the other factory use 1.5mm so the strengh is different. The bearings we use Brand IJK and EASE made in Japan.
The needle we use Germany SGHETZ and DOTEC
Shuttle: HASHIMA Japanese AND Swiss SHUTTLE
For the quilting machine in China. The best quality for the multi-needle quilting machine made in Dongguan and for the single needle made in jiangshu.
Yet the cheapest in Qingdao. Contact us if you need more details on Machine Quilting. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Quilting、Quilting Machine. If these products fail to match your need, please contact us and we would like to provide relevant information.
1. D: Digital control; S: Small shuttle (HQ7 Japaneseshuttle )
2.128": 128inch width (3251mm)
3.2: Two needle row
4. Overall dimentions: 5500*1100*1600mm
5: Weight: 4000kg
6: Running speed: 200-500r/m
7: Needle distance: 25.4mm
8. Rating power: 6.2kw
9. Thickness: ≤ 30mm
10. Max. Pattern size: 6inch by 6inch
Applications:
Quilting Machine is widely used for quilting high-quality Mattress panel, Quilt covers, household ornaments, Clothing, Handbag, Glove, Bedding, Comforters, Seat covers, Sleeping bag, etc.
Main features: This quilting machine Adopting digital control program, speed can be changed digitally.
Detailed Introduction of Machine:



Functions & Features:
*Using Panasonic servo motor (optional), saddles and rollers driven by Panasonic servo devices.
*The revolution of the spindle controlled by Panasonic frequency conversion control devices.
* Large number of built-in quilting patterns for your choice, patterns can be changed in a few second.
*Easy and quick make new designs(360degree, and 180 degree, patterns are available. )
*Available features such as high rigidity machine body, perfect protecting equipment and steady going control system, high speed of running, low noise and precise quilting.
*Running state detecting and inditating in order to show how the machine works.
*Production management function, easy for checking the production cost.
*USB interface.
*Using pattern of software 20064
*CAD drawing method to ensure the precision of pattern and facilitate the operation.
*Tack and jump function included
*Function of pattern compensation, an effective solution to the distortion of patterns when quilting thick materials.
*Simulation display of quilting.
*Automatic needle raising, location brake system and CNC speed adjustment.
*Needle bar and pressing block take the double rocks device.
*All faults tips for servo motor system and transducer, which is eminilate problems.
*Particular pattern-editing program to ensure the precision of pattern and facilitate the operation.
Materials:
Chishing:
Use Japan imported steel (The price difference of the steel imported and demestic is about 2times ) The life of the machine depends on it.
Other China factory:
Use domestic steel
Parts:
ChiShing:
We have own accessories produce workshop so that the quality can be controlled.
Other China factory: Who purchased accessories.
Function:
Chishing:
The function which they have our machine do have.
The digital control quilting machine itselft has the function thread break detector
Other China factory:
The function is charged extra.
Accessories and Spare Parts:
Chishing:
Come with important parts like the bearing etc. And the quality of the shuttle etc are different. We use imported one the price domestic and imported is two times. Also The machine itselt.
Such as the pressing board we use 3mm or 5mm the other factory use 1.5mm so the strengh is different. The bearings we use Brand IJK and EASE made in Japan.
The needle we use Germany SGHETZ and DOTEC
Shuttle: HASHIMA Japanese AND Swiss SHUTTLE
For the quilting machine in China. The best quality for the multi-needle quilting machine made in Dongguan and for the single needle made in jiangshu.
Yet the cheapest in Qingdao. Contact us if you need more details on Machine Quilting. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Quilting、Quilting Machine. If these products fail to match your need, please contact us and we would like to provide relevant information.
