Model No.: CS64
Bed series products machinery, Handbags processing machinery, Glove processing machinery, Pajams processing machinery, Garment processing machinery, Saddle processing machinery, Insoles processing machinery
1. D: Digital control; S: Small shuttle (HQ7 Japaneseshuttle)
2. Quilting width: 64inch (1626mm)
3. Two needle row

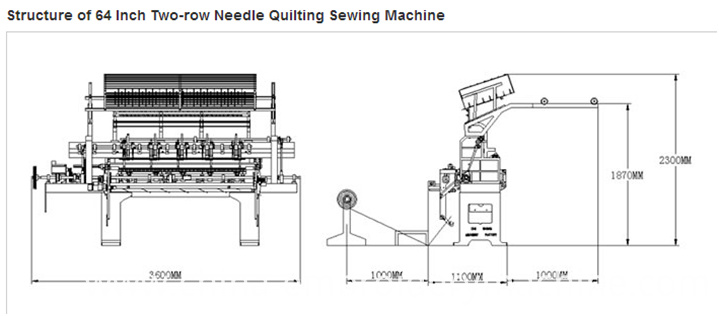

4. Overall dimentions: 3600*1100*1600mm
5. Weight: 2300kg
6. Quilting speed: 200-500r/m
7. Needle space: 25.4mm
8. Rating power: 3.5kw
9. Quilting thickness: 30mm (400g / m2)
10. Max. Pattern size: 6inch by 6inch
11. X-axis movement: 8inch
12. Stitch: 2-6mm
13. Output: 20-120meter. 70-80meter, it depends on the quilting patterns.
14. Rated voltage: 380V 3 phase (other voltage can be order)
15. Model of needle: 16#, 19#
Advantages and features:
*This quilting machine Adopting digital control program.
*Saddles and rollers driven by Panasonic servo devices.
*The revolution of the spindle controlled by Panasonic frequency conversion control devices.
*Large number of built-in quilting patterns for your choice.
*Easy and quick make new designs.
*360 degrees quilting
*Tack and jump function included
*stitches between 2mm-6mm adjustable.
*Function of pattern compensation, an effective solution to the distortion of patterns when quilting thick materials.
*Automatic pause in the case that the upper thread or the bottom thread breaks
*Running state detecting and indicating in order to show the machine works
*Automatic needle-lifting and CNC speed adjustment
*Available features such as high rigidity, high speed of running, low noise
*Simulation display of quilting.
*Automatic needle raising and location brake system.
*Function of automatic stop on breaking of thread(optional)
*Infrared sensors to guarantee the safety of the operator
*Adopt the advanced pattern-design (design-edit)program.
*Needle bar and pressing block take the double rocks device.
*High rigidity machine body, perfect protecting equipment and steady going control system
*X Y motors (Panasonic brand)are drivern by servo System and principal axis takes frequency Ports system.
*Test the working state of all sensors and comuter in real time.
*Auto stop when upper thread break and the bottom thread length can be set.
*All faults tips for servo motor system and transducer, which is eminilate problems.
*360 degrees quilting and limiteless multi-span and tack and jump function (indepent )included
*steady running and high speed and low noise and precise quilting.
The seller is responsible for changing the parts which have the quality problem of the machines in one year, but except from the wearing parts and the quality problem were leaded by wrong operation and other man-made factors, and the quality problem should be confirmed by two sides.
Computerized multi-needle quilting machine, Digital control multi-needle quilting machine, Digital control shuttle multi-needle quilting machine, Computerized lock-stitch multi-needle quilting machine, High-speed computerized shuttle multi-needle quiltting machine.
The needles and shuttles parts:
Chishing chooses West Germany needles. Choosing what kind of needles depends on different sewing material. For instance, as for processing fine elastic materials or thick leather materials, SCHMETZ can offer a wide range of special needles, including SCHMETZ SERV 7, KN, SF and FHS.
Standard needles coming with Chishng machine are DUOTEC. And if you make special materials then you need purchase different needles according to your products.
Chishing imports HASHIMA shuttles. The quality of shuttles will directly affect the sewing quality and production efficiency. The poor quality shuttles will appear shrapnel lock is not tight, bounce off and thread-waste. Shuttle hot deformation will cause skip stitches after used for some time.
CHISHING brand quilting machines insist on imported shuttles, for instance, Japan and Swiss brand. Thus, CHISHING quilting machines have the advantages of Japan and Switzerland quilting machine.
CS64 quilting machine has four models:
CS64-2 HQ7 computerized quilting machine
CS64-2 HQ10 computerized quilting machine
CS64-3 HQ7 computerized quilting machine
CS64-3 HQ10 computerized quilting machine
The difference between HQ7 and HQ10:
HQ7 shuttle can hold 60 meters thread (50/2 40/2 thread)
HQ10shuttle can hold 90 meters thread (50/2 40/2 thread)
The difference between 2 needle bar and 3 needle bar:
2 needle bar machine: Max. Pattern size is 6 inch by 6 inch
3 needle bar machine: the Max. Pattern size is 12 inch by 12 inch ( use NO.1 and NO.3 needle row)
Contact us if you need more details on Machine Quilting. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Quilting Machine、Glove-Making Quilting. If these products fail to match your need, please contact us and we would like to provide relevant information.
