CS64 High Speed Industrial Multi-Needle Quilting Machine

Productivity:
30-60sets Per Month
Place of Origin:
China
Supply Ability:
30-60sets Per Month
Certificate:
CE, ISO9001
  • Mr. Jason Wang

Basic Info

Model No.:  CS64

Product Description

Model NO.: CS64 Condition: New Specification: ISO9000-2000; CE; SGS HS Code: 8452 Certification: CE, ISO9001: 2000 Trademark: Chi Shing Origin: China CSDS64"-2 digital control high speed quilting machine (New Model)
1. D: Digital control; S: Small shuttle (HQ7 Japaneseshuttle )
2. Quilting width: 64inch (1626mm)
3.Needle row: 2 or 3
4. Overall dimentions: 3600*1100*1600mm
5: Weight: 2300kg
6: Quilting speed: 200-800r/m
7: Needle space: 25.4mm
8. Rating power: 3.5kw
9. Quilting thickness: 30mm (400g / m2)
10. Max. Pattern size: 12inch by 12inch
11. Stroke: 152.4mm
12. :Voltage: 380V
13. Stitch: 2-6mm
14. Output: It dependeds on the quilting patterns.
15. Rated voltage: 380V 3 phase (other voltage can be order)

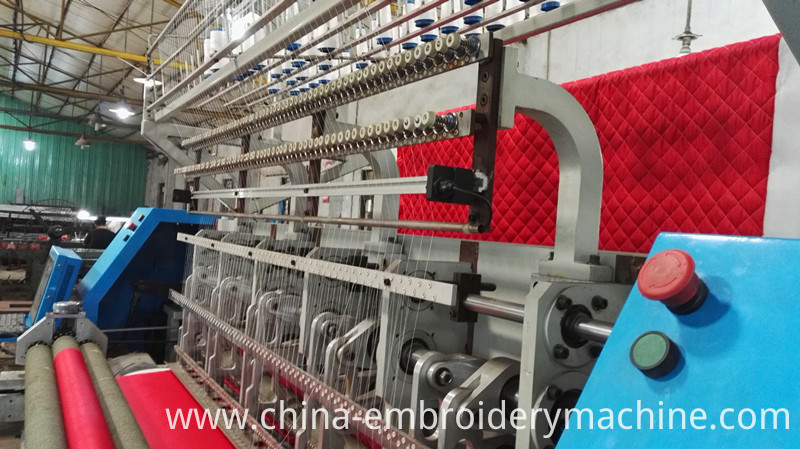

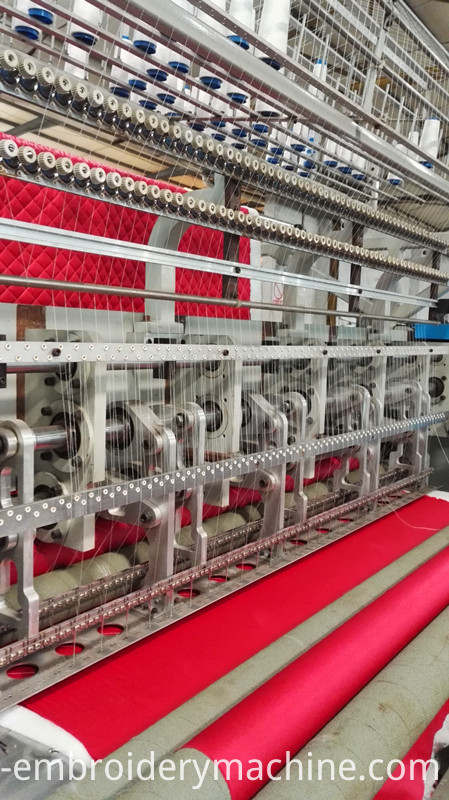

Detailed pictures of Machine:

CS64 High Speed Industrial Multi-Needle Quilting MachineCS64 High Speed Industrial Multi-Needle Quilting MachineCS64 High Speed Industrial Multi-Needle Quilting MachineCS64 High Speed Industrial Multi-Needle Quilting Machine Finished products display: Classical diamond lattice or jewel case design is one of the main patterns for clothing and handbags. After the machine installed and debugged, this diamond lattice is a testing standard. CHISHING brand quilting machine must be tested before delivery and also the tested sample must be put on the machine, then packing the machine . Since 1955, CHANEL plays a fashionable marks on Quilting, and Quilted texture becomes one of the distinctive elements on runway, because both high-end fashionable labels and street fashion consumer brand can often seek to its shadow. In Autumn/winter 2012, Quilting process is a part of the brand watchfulness, mix the hale aura and gorgeous texture together. Quilted clothing conquered the masses with its unique aesthetic feeling.
CS64 High Speed Industrial Multi-Needle Quilting MachineCS64 High Speed Industrial Multi-Needle Quilting Machine

Details of  Chishing quilting machine:

Machine Base: In order to reduce vibration, deformation and bold reinforcement, rollers have carried on special heat treatment.

Driving Parts: Servo motor, Drivers and Transducer are Panasonic brand.

Raw Materials Feeding Part:
Because of adopting unique adjustable roller active-feeding system, tension and pressure can be adjusted ideally for different thickness of materials, which can ensure perfect quilting effect without skip stitch and it will not damage the fabric.

The needles and shuttles parts:
Needles parts:
Chishing chooses West Germany needles. Choosing what kind of needles depends on different sewing material. For instance, as for processing fine elastic materials or thick leather materials, SCHMETZ can offer a wide range of special needles, including SCHMETZ SERV 7, KN, SF and FHS.
Standard needles coming with Chishng machine are DUOTEC. And if you make special materials then you need purchase different needles according to your products.

Shuttles parts:
Chishing imports HASHIMA shuttles. The quality of shuttles will directly affect the sewing quality and production efficiency. The poor quality shuttles will appear shrapnel lock is not tight, bounce off and thread-waste. Shuttle hot deformation will cause skip stitches after used for some time.
CHISHING brand quilting machines insist on imported shuttles, for instance, Japan and Swiss brand. Thus, CHISHING quilting machines have the advantages of Japan and Switzerland quilting machine.

CS64 quilting machine has four models:
CS64-2 HQ7 computerized quilting machine
CS64-2 HQ10 computerized quilting machine
CS64-3 HQ7 computerized quilting machine
CS64-3 HQ10 computerized quilting machine

The difference between HQ7 and HQ10:
HQ7 shuttle can hold 60 meters thread (50/2 40/2 thread)
HQ10shuttle can hold 90 meters thread (50/2 40/2 thread)

The difference between 2 needle bar and 3 needle bar:
2 needle bar machine: Max. Pattern size is 6 inch by 6 inch
3 needle bar machine: the Max. Pattern size is 12 inch by 12 inch ( use NO.1 and NO.3 needle row)
 Main features and functions:
*this quilting machine Adopting digital control program.

*Saddles and rollers driven by Panasonic servo devices.

*The revolution of the spindle controlled by Panasonic frequency conversion control devices.

*Large number of built-in quilting patterns for your choice.

*Easy and quick make new designs.

*360 degrees quilting .

*Tack and jump function included

*stitches between 2mm-6mm adjustable.

*Function of pattern compensation, an effective solution to the distortion of patterns when quilting thick materials.

*Simulation display of quilting.

*Automatic needle raising and location brake system.

*Function of automatic stop on breaking of thread (optional)

*Infrared sensors to guarantee the safety of the operator.


HS Code:

8452

Trademark:

ChiShing

Model:

CSDB64"-2/ 64"-3

Standard:

ISO9000-2000 ;CE

Productivity:

30-60sets per month

Origin:

China

Packing:

Export Packing

Min. Order:

1

Transportation:

By Sea.
