Computerized Flat Knitting Machine Double system

  • Computerized Flat Knitting Machine Double system
  • Computerized Flat Knitting Machine Double system
  • Computerized Flat Knitting Machine Double system
  • Computerized Flat Knitting Machine Double system

Computerized Flat Knitting Machine Double system

    Min. Order: 1 sets
    Brand: xinglong
    Transportation: Ocean,Land
    Supply Ability: 1000sets/Year
    Port: Shanghai

Product Description

lace braiding machine

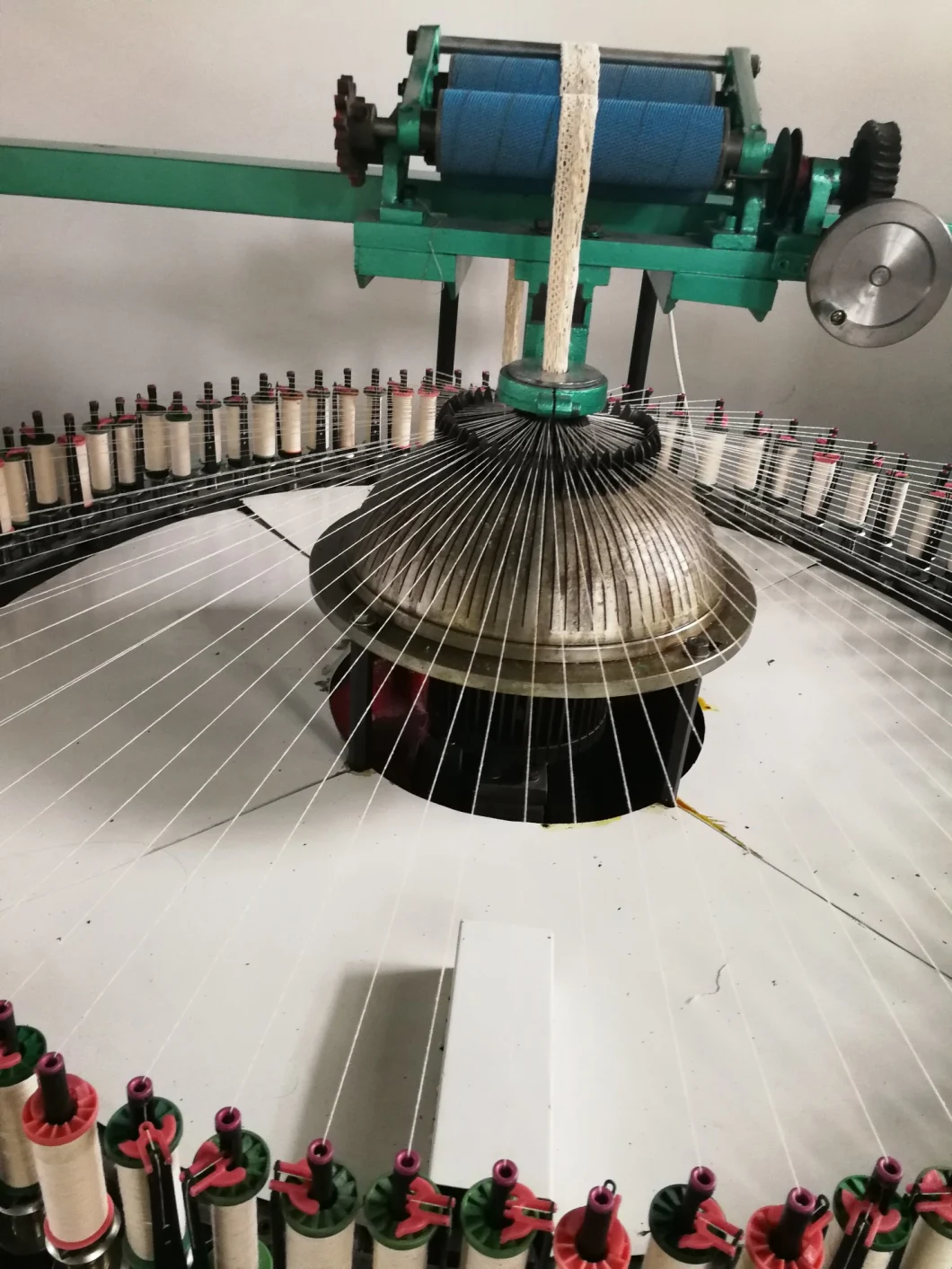

PTHD computer controlled jacquard knitting machine uses cotton yarn, chemical fiber, silk, wool, linen and other specifications, color threads as raw materials to weave flower lace belts and tapes with various specifications and patterns. Products enjoy extensive purpose in the vast braid, clothing, shoes, hats, decorations and other industries.
lace braiding machine

lace braiding machine

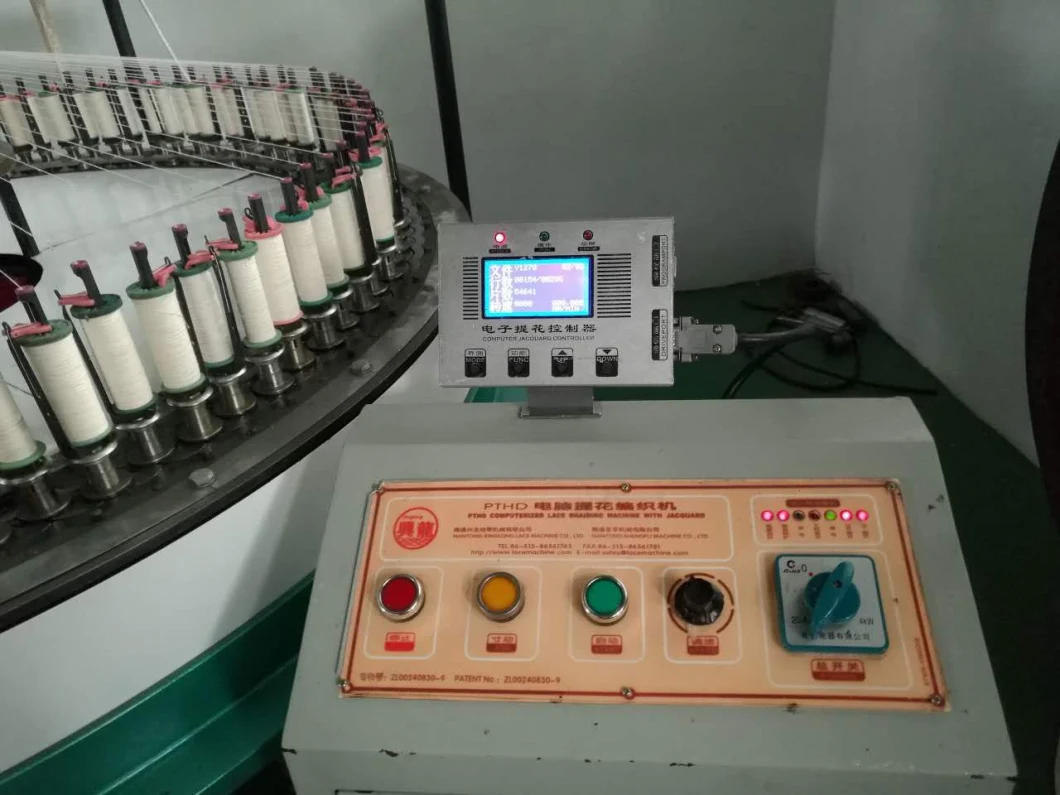

PTHD computer controlled jacquard knitting machine applies modern scientific and technological achievements - CAD/CAM integrated technology and frequency control technology to replace the pattern card control technology. Under the control of the microcomputer (computer controlled weaving), apply the successfully developed "figure line intersection" pattern design software to change the designed pattern program instructions into a miniature-electromagnet control rotary peach plate, driving the orderly mechanical action of spindle pattern weaving. At the same time, send out the formed fillet through the role of the blade before the synchronous action of take-up part with the forming of pattern and ultimately complete the fillet jacquard knitting.

lace braiding machine



Basic technical parameters
Spindle speed: 0~300r / min, frequency control;
Maximum take-up speed: 0.35m / min;
The maximum width of the fabric: 180mm;
No-load noise: 85dB (A);
Bearing temperature rise: 20K;
CPU operating frequency: 33MHZ;
Memory: 32KB;
Input point: 8 points;
Output point: 68 points / 100 points (64 spindles/ 96 spindles);
Micro electromagnet: Operating frequency: 67HZ;
Start suction: 50g;
Machine power consumption: 1.5 / 2KW (64 spindles/96 spindles);
Matched quill: outer diameter: 37.00mm;
Inner diameter: 12.20mm;
Length: 91.00mm.


lace braiding machine

Nantong Jielei Machinery Co.,Ltd

 Through the reorganization of assets between Nantong Xinglong Thread Tape Machinery Co., Ltd. And Nantong Jielei Machinery Co., Ltd. Our company has become a national high-tech enterprise; Established in 1954, we now are a specialized manufacturer of knitting machineries with a land of 56, 000 square meters.

Taking "learning advanced technology from world, leading the trend of Chinese weaving industry" as development philosophy, we rely on strong professional skills and strive to develop high-tech products to meet market demand constantly. Up to now, we have become an important force of knitting machinery industry of China to participation in global competition. As the hi-tech product of China and Jiangsu province, our "Xinglong" PTHD type computerized jacquard knitting machine obtained the Second prize of China machinery industry federation, Second prize of scientific and technological progress of Jiangsu province and First prize of Nantong science and technology progress. Due to world-leveled production scale, performance and quality, our products are well sold in Chin and international market.
