Home > Products > embroidery machine > Cshx234b Quilting and Embroidery Machine

Cshx234b Quilting and Embroidery Machine

Basic Info

Model No.:  CSHX234B

Product Description

Model NO.: CSHX234B Condition: New Heads: 34 Rating Power: 5.5kw Voltage: 380V Needle Distance: 50.8mm Specification: ISO9000-2000; CE; SGS HS Code: 8452 Certification: CE, ISO9001: 2000 Model Number: Cshx-234b Weight: 3800kg Running Rate: 200-800 Rpm Needle Model: #11-18 Trademark: ChiShing Origin: China Computerized quilting Embroidery Machine

Main application and performances: It is  widely use for Clothing ,beddings ,bags,automotive shoes ,wardrobe door and background walls etc . 1.This Quilting and embroidery machine adopting digital control program .

2.The revolution of the spindle ,saddles and Rollers controlled by panasonic servo momor and drivers . 3.360° quilting and embroidery ,the pc come with 300 kind of quilting and embroidery patterns for you choice . 4.welcom pattern design system . 5.Tack and jump function includd . 6.Stitches length 2mm-12mm adjustable . 7.Function of pattern compensation and effective solution to the distortion of patterns . 8.Adjustable pressing plate lifting mechanism enables you quilt a broad range of material thickness . 9.Thread break detectors (top tread and bottom thread ) 10.Automatic needle raising and location brake systm . 11.Error problem detection system. 12.Emergency sensors safety device . 13.Improved quilting and embroidery software control system allows more precise and stable quilting and embroidery operations .

14.Improved fabric loading system :The fabric -loading motor two way running makes the fabric loading more easier and faster and provides tension control and ensure good quilting embroidery effect. Details of Computerized quilting embroidery machine
Cshx234b Quilting and Embroidery Machine
Cshx234b Quilting and Embroidery Machine
Cshx234b Quilting and Embroidery Machine
After-sale service: 1) Installation & Commissioning: The seller can provide the installation, commissioning and

 training service in buyer's factory, while the buyer needs to pay for VISA application,

air ticket, accommodation, USD100/day/person as commissioning fee, and (if necessary)

interpreting fee for seller's technician.  2)  After one year, the buyer needs to pay USD200/day/person as service charge, as well as the fee of VISA application, air ticket , accommodation, and (if necessary) interpreting  fee for seller's technician.

3.) Warranty:For the machine above,the seller provides one year warranty starting from the  moment the seller dispatches the machines. For the detailed guarantee period of each  part, please refer to the operation manual.Wearing parts,consumption material and the  damage incurred by the buyer's incorrect operation are out of warranty range.
About Us   Dongguan Chishing Machinery Co., Ltd. was established in 1989 and immediately secures a leading position in the mainland Chinese quilting industry as one of the first manufacturers to produce multi-needle quilting machines.

At present, we are a professional manufacturer and developer of multi-needle quilting machines of various specifications. Since our foundation, our work space has increased to over 12,000 square meters, with our production capacity having been quadrupled. Our products include mechanical and digital control multi-needle machines of both the shuttle and non-shuttle varieties. In order to satisfy the diverse requirements of our unique customers, our technicians continue to work hard in developing a new series of multifunctional quilting equipment.

Our products are sold worldwide and our sales currently account for 70% of the total Chinese Quilting Machine market. We maintain sales offices throughout China, as well as overseas offices in Canada, Pakistan, and Singapore. With an excellent reputation in the industry, outstanding after-sales service, and superior quality, we benefit from both trust and appreciation from our customers and fulfill our goal of "reputation first, service first, and quality first"

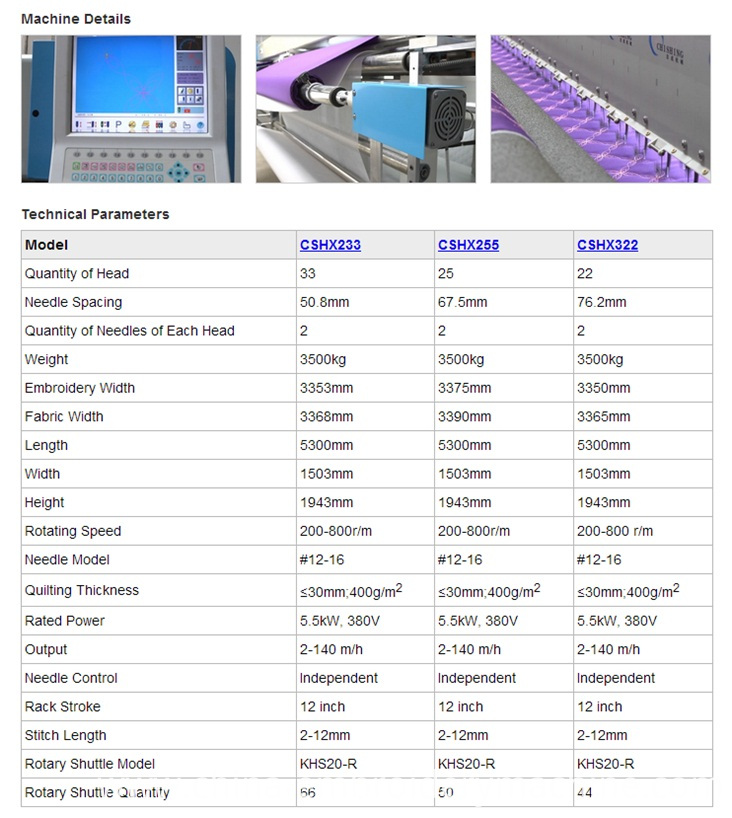

 Computerized quilting embroidery machine
Model  Heads  Needle Distance  Needle Qty  Weight  Embroidery Width  Fabric Width  Lengh Width  Hight
CSHX-233 33 50.8mm 2 3500KG 3353mm 3368mm 5300mm 1503mm 1943mm
CSHX-255 25 67.5mm 2 3500KG 3375mm 3390mm 5300mm 1503mm 1943mm
CSHX-322 22 76.2mm 2 3500KG 3350mm 3365mm 5300mm 1503mm 1943mm

Runing Rate  Needle type  Quilting Thinkness Rating Power  Production Needle control Saddle Distance Needle Stitch Roting Hook Type  Quantiy Rotating Hook
200-800RPM #12-16 10mm/m2 5.5kw 380v 2-140m/h Independent 12" 2-12mm KHS20-R 66
200-800RPM #12-16 10mm/m2 5.5kw 380v 2-140m/h Independent 12" 2-12mm KHS20-R 55
200-800RPM #12-16 10mm/m2 5.5kw 380v 2-140m/h Independent 12" 2-12mm KHS20-R 44

Contact us if you need more details on Quilting and Embroidery Machine. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Quilting and Embroidery Sewing Machine、Quilting Embroidery Machine. If these products fail to match your need, please contact us and we would like to provide relevant information.
  • Computerized 38 Head High Speed Quilting and Embroidery Machine

    Model NO.: GDD-Y-238-2 Customized: Non-Customized Condition: New Head Number: 38 Needle Number: 76 Size: 6104(L)*1500(W)*1940(H)mm Main Motor: Servo Motor Storage Capacity: 60, 000, 000stitches Design Storage: 1000PCS Power: 4.5kw Quilting Width: 1931mm*2 Speed: 400-1000rpm Trademark: DADAO Transport Package: Polybag...

  • 42-Head Computerized High Speed Quilting and Embroidery Machine with Double Rollers

    Model NO.: GDD-Y-242-2 Customized: Non-Customized Condition: New Head Number: 42 Needle Number: 84 Size: 6308(L)*1500(W)*1940(H)mm Main Motor: Servo Motor Storage Capacity: 60, 000, 000stitches Design Storage: 1000PCS Power: 4.5kw Quilting Width: 2134mm*2 Number of Head: 2 Trademark: DADAO Transport Package: Polybag...

  • Computerized 40 Head High Speed Quilting and Embroidery Machine

    Model NO.: GDD-Y-240-2 Customized: Non-Customized Condition: New Head Number: 40 Needle Number: 80 Size: 6206(L)*1500(W)*1940(H)mm Main Motor: Servo Motor Storage Capacity: 60, 000, 000stitches Design Storage: 1000PCS Power: 4.5kw Quilting Width: 2032mm*2 Speed: 400-1000rpm Trademark: DADAO Transport Package: Polybag...

  • 44-Head Computerized High Speed Quilting and Embroidery Machine with Double Rollers

    Model NO.: GDD-Y-244-2 Customized: Non-Customized Condition: New Head Number: 44 Needle Number: 88 Size: 6409(L)*1500(W)*1940(H)mm Main Motor: Servo Motor Storage Capacity: 60, 000, 000stitches Design Storage: 1000PCS Power: 4.5kw Quilting Width: 2236mm*2 Trademark: DADAO Transport Package: Polybag Specification: 50.8 mm...
