Cshx233 Garment Quilting and Embroidery Machine
Basic Info
Model No.: cshx233
Product Description
Model NO.: cshx233 Knitting Machine Cut: Weaving Machinery Knitting Style: Flat Needle Style: Multi-Needle Computerized: Computerized Trademark: Chishing Specification: CE HS Code: 8447902000 Type: Quilting and Embroidery Machine Knitting Product Type: Weaving Machinery Knitting Method: Double Needle Bar Style: Flatbed Knitting Machine Certification: CE Transport Package: Standard Export Packing Origin: China Chishing quilting and embroidery machine details as following:


Sample pictures

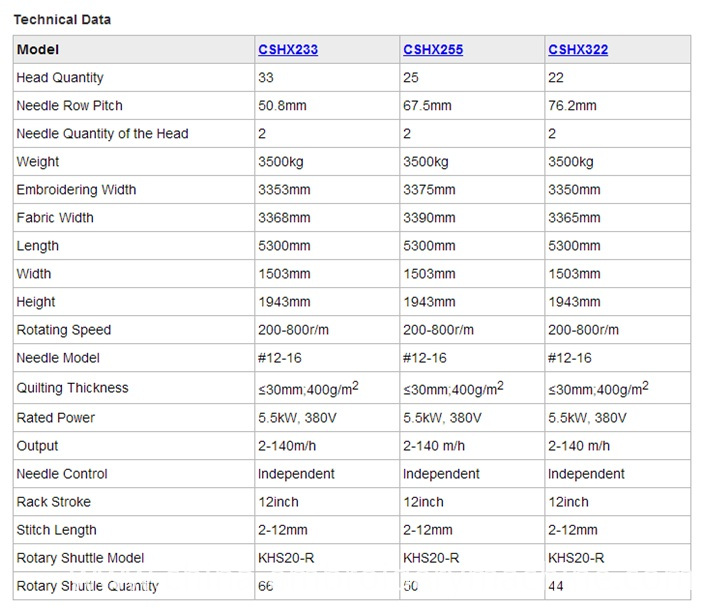

Main technical Parameters
Dimension: 5500mm X 1500mm X 1800mm
Gross weight: 4000
Processing width: 3200mm(128inch)
Processing thickness: ≤ 30mm
Moving rack range: 305mm(12inch)
Shuttle speed: 100~800rpm(Adjustable)
Power source: 380V, 50Hz
Power: 6KW
Rows of needle: Single
Spinning shuttle number: 66PCS
Base line length: 120m
Features
Three axes X, Y, Z arc controlled by servomotors separately
Automatic detection of broken lines, with automatic suspension and back-process functions
Automatic memory for the current position in case of power cut-off.
The pattern-design system is acceptable to common embroidering machine, USB flash memory is used for storing patterns
The fabric pulling-up structure has three axes for adjustment
Effective clutch is matched well with the ROLLER structure at the front and the rear, to prevent any slipping of the fabric material
The needle rack is free of lubrication
The base thread can be used up, without waste
Computerized single-row quilting & embroidering machine features the simultaneous performance of quilting and embroidering. It is of high speed, high capacity, able to process thick materials. Its quilting trace is flat and tidy, knitting factories for quilting and embroidering process. Its processing width is up to 3.2 meters, suitable for the tendency of this industry in patterns and width. For garment industry, if the width requirement is less than 1.6 meters, it can process two sheets of materials at the same time, which can greatly improve the output and efficiency.
The advantages of the quilting and embroidery machine
(1) As the quilting embroidery machine use hook and independent needle bar and presser foot, stitch very smooth, clear, beautiful, especially for high-quality fabric quilting and embroidering. The normal Quilting Machine use shuttle and plate, the stitching is rough and three-dimensional feeling is not strong, easy to float.
(2) Quilting and embroidery machine has the quilting and embroidery function, embroidered floral combinations at once. Yet the quilting machine only can quilting and makes some very simple embroidery patterns.
(3) Needle, hook and the rotary spindle's assembling standards and movements are in full compliance with "Industrial sewing machine manual" which is appropriate, sewing action reliable, less thread jumping and low thread breaking rate and needle breakage rate
Large hook which capacity of 120 meters of the bottom thread which can reduce the bobbins change over time and eliminate thread waste.
No plate and Shuttle, minimal operating noise Contact us if you need more details on Embroidery Machine. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Quilting Machine、Garment Sewing Machine. If these products fail to match your need, please contact us and we would like to provide relevant information.


Sample pictures



Main technical Parameters
Dimension: 5500mm X 1500mm X 1800mm
Gross weight: 4000
Processing width: 3200mm(128inch)
Processing thickness: ≤ 30mm
Moving rack range: 305mm(12inch)
Shuttle speed: 100~800rpm(Adjustable)
Power source: 380V, 50Hz
Power: 6KW
Rows of needle: Single
Spinning shuttle number: 66PCS
Base line length: 120m
Features
Three axes X, Y, Z arc controlled by servomotors separately
Automatic detection of broken lines, with automatic suspension and back-process functions
Automatic memory for the current position in case of power cut-off.
The pattern-design system is acceptable to common embroidering machine, USB flash memory is used for storing patterns
The fabric pulling-up structure has three axes for adjustment
Effective clutch is matched well with the ROLLER structure at the front and the rear, to prevent any slipping of the fabric material
The needle rack is free of lubrication
The base thread can be used up, without waste
Computerized single-row quilting & embroidering machine features the simultaneous performance of quilting and embroidering. It is of high speed, high capacity, able to process thick materials. Its quilting trace is flat and tidy, knitting factories for quilting and embroidering process. Its processing width is up to 3.2 meters, suitable for the tendency of this industry in patterns and width. For garment industry, if the width requirement is less than 1.6 meters, it can process two sheets of materials at the same time, which can greatly improve the output and efficiency.
The advantages of the quilting and embroidery machine
(1) As the quilting embroidery machine use hook and independent needle bar and presser foot, stitch very smooth, clear, beautiful, especially for high-quality fabric quilting and embroidering. The normal Quilting Machine use shuttle and plate, the stitching is rough and three-dimensional feeling is not strong, easy to float.
(2) Quilting and embroidery machine has the quilting and embroidery function, embroidered floral combinations at once. Yet the quilting machine only can quilting and makes some very simple embroidery patterns.
(3) Needle, hook and the rotary spindle's assembling standards and movements are in full compliance with "Industrial sewing machine manual" which is appropriate, sewing action reliable, less thread jumping and low thread breaking rate and needle breakage rate
Large hook which capacity of 120 meters of the bottom thread which can reduce the bobbins change over time and eliminate thread waste.
No plate and Shuttle, minimal operating noise Contact us if you need more details on Embroidery Machine. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Quilting Machine、Garment Sewing Machine. If these products fail to match your need, please contact us and we would like to provide relevant information.
