Cshx233 Digital Control Industrial Multi-Head Quilting and Embroidery Machine
Basic Info
Model No.: CSHX233
Product Description
Model NO.: CSHX233 Condition: New Transport Package: Standard Export Packing Origin: China Certification: CE, ISO9001: 2000 Trademark: Chishing Specification: CE HS Code: 8447902000 Main technical Parameters:
Dimension: 5500mm X 1500mm X 1800mm
Gross weight: 4000kg
Processing width: 3200mm(128inch)
Processing thickness: ≤ 30mm
Moving rack range: 305mm(12inch)
Shuttle speed: 100~800rpm(Adjustable)
Power source: 380V, 50Hz
Power: 6KW
Rows of needle: Single
Spinning shuttle number: 66PCS
Base line length: 120m
Features:
Three axes X, Y, Z arc controlled by servomotors separately
Automatic detection of broken lines, with automatic suspension and back-process functions
Automatic memory for the current position in case of power cut-off
The pattern-design system is acceptable to common embroidering machine, USB flash memory is used for storing patterns
The fabric pulling-up structure has three axes for adjustment
Effective clutch is matched well with the ROLLER structure at the front and the rear, to prevent any slipping of the fabric material
The needle rack is free of lubrication
The base thread can be used up, without waste
Computerized single-row quilting & embroidering machine features the simultaneous performance of quilting and embroidering. It is of high speed, high capacity, able to process thick materials. Its quilting trace is flat and tidy, knitting factories for quilting and embroidering process. Its processing width is up to 3.2 meters, suitable for the tendency of this industry in patterns and width. For garment industry, if the width requirement is less than 1.6 meters, it can process two sheets of materials at the same time, which can greatly improve the output and efficiency.

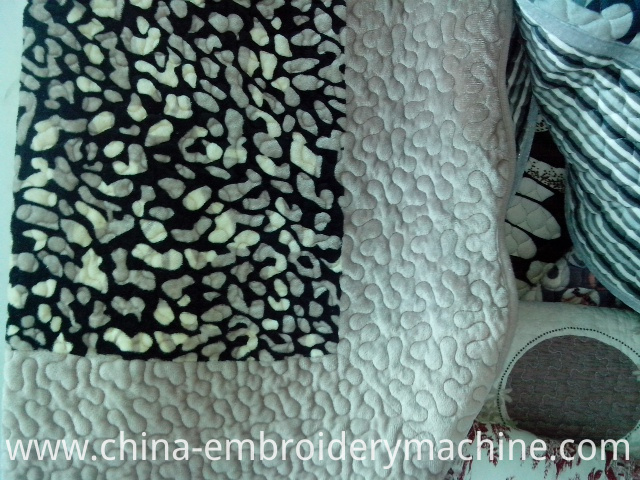

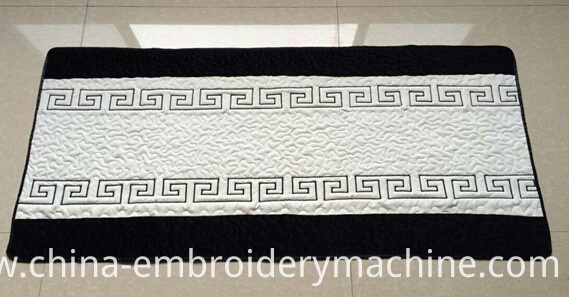

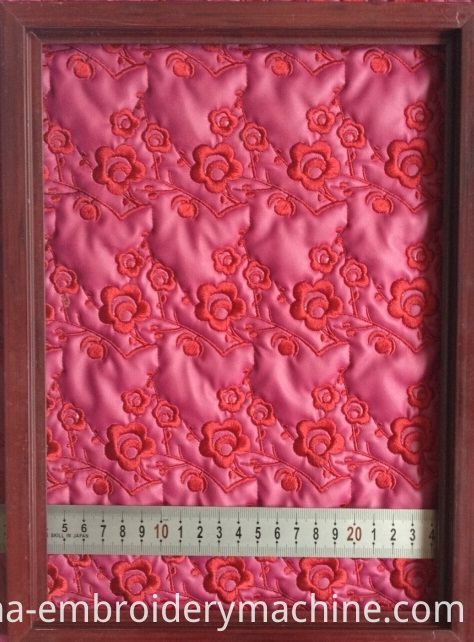

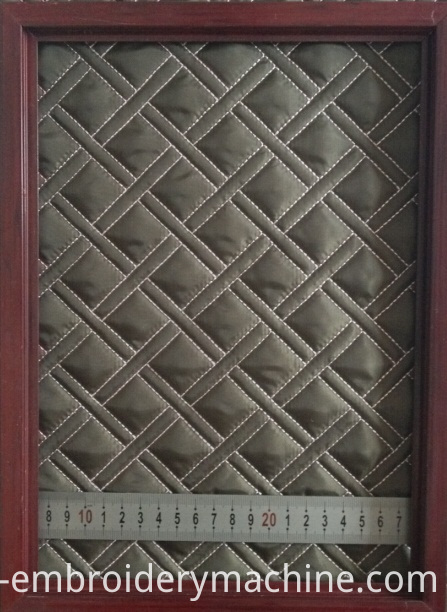

Samples' photos:


Finished products of customers:




The advantages of the quilting and Embroidery Machine:
(1) As the quilting embroidery machine use hook and independent needle bar and presser foot, stitch very smooth, clear, beautiful, especially for high-quality fabric quilting and embroidering. The normal Quilting Machine use shuttle and plate, the stitching is rough and three-dimensional feeling is not strong, easy to float.
(2) Quilting and embroidery machine has the quilting and embroidery function, embroidered floral combinations at once. Yet the quilting machine only can quilting and makes some very simple embroidery patterns.
(3) Needle, hook and the rotary spindle's assembling standards and movements are in full compliance with "Industrial sewing machine manual" which is appropriate, sewing action reliable, less thread jumping and low thread breaking rate and needle breakage rate
Large hook which capacity of 120 meters of the bottom thread which can reduce the bobbins change over time and eliminate thread waste.
No plate and Shuttle, minimal operating noise. Contact us if you need more details on Embroidery Machine. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Quilting and Embroidery Machine、Chinese Quilting and Embroidery Machine. If these products fail to match your need, please contact us and we would like to provide relevant information.
Dimension: 5500mm X 1500mm X 1800mm
Gross weight: 4000kg
Processing width: 3200mm(128inch)
Processing thickness: ≤ 30mm
Moving rack range: 305mm(12inch)
Shuttle speed: 100~800rpm(Adjustable)
Power source: 380V, 50Hz
Power: 6KW
Rows of needle: Single
Spinning shuttle number: 66PCS
Base line length: 120m
Features:
Three axes X, Y, Z arc controlled by servomotors separately
Automatic detection of broken lines, with automatic suspension and back-process functions
Automatic memory for the current position in case of power cut-off
The pattern-design system is acceptable to common embroidering machine, USB flash memory is used for storing patterns
The fabric pulling-up structure has three axes for adjustment
Effective clutch is matched well with the ROLLER structure at the front and the rear, to prevent any slipping of the fabric material
The needle rack is free of lubrication
The base thread can be used up, without waste
Computerized single-row quilting & embroidering machine features the simultaneous performance of quilting and embroidering. It is of high speed, high capacity, able to process thick materials. Its quilting trace is flat and tidy, knitting factories for quilting and embroidering process. Its processing width is up to 3.2 meters, suitable for the tendency of this industry in patterns and width. For garment industry, if the width requirement is less than 1.6 meters, it can process two sheets of materials at the same time, which can greatly improve the output and efficiency.
Samples' photos:


Finished products of customers:




The advantages of the quilting and Embroidery Machine:
(1) As the quilting embroidery machine use hook and independent needle bar and presser foot, stitch very smooth, clear, beautiful, especially for high-quality fabric quilting and embroidering. The normal Quilting Machine use shuttle and plate, the stitching is rough and three-dimensional feeling is not strong, easy to float.
(2) Quilting and embroidery machine has the quilting and embroidery function, embroidered floral combinations at once. Yet the quilting machine only can quilting and makes some very simple embroidery patterns.
(3) Needle, hook and the rotary spindle's assembling standards and movements are in full compliance with "Industrial sewing machine manual" which is appropriate, sewing action reliable, less thread jumping and low thread breaking rate and needle breakage rate
Large hook which capacity of 120 meters of the bottom thread which can reduce the bobbins change over time and eliminate thread waste.
No plate and Shuttle, minimal operating noise. Contact us if you need more details on Embroidery Machine. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Quilting and Embroidery Machine、Chinese Quilting and Embroidery Machine. If these products fail to match your need, please contact us and we would like to provide relevant information.
