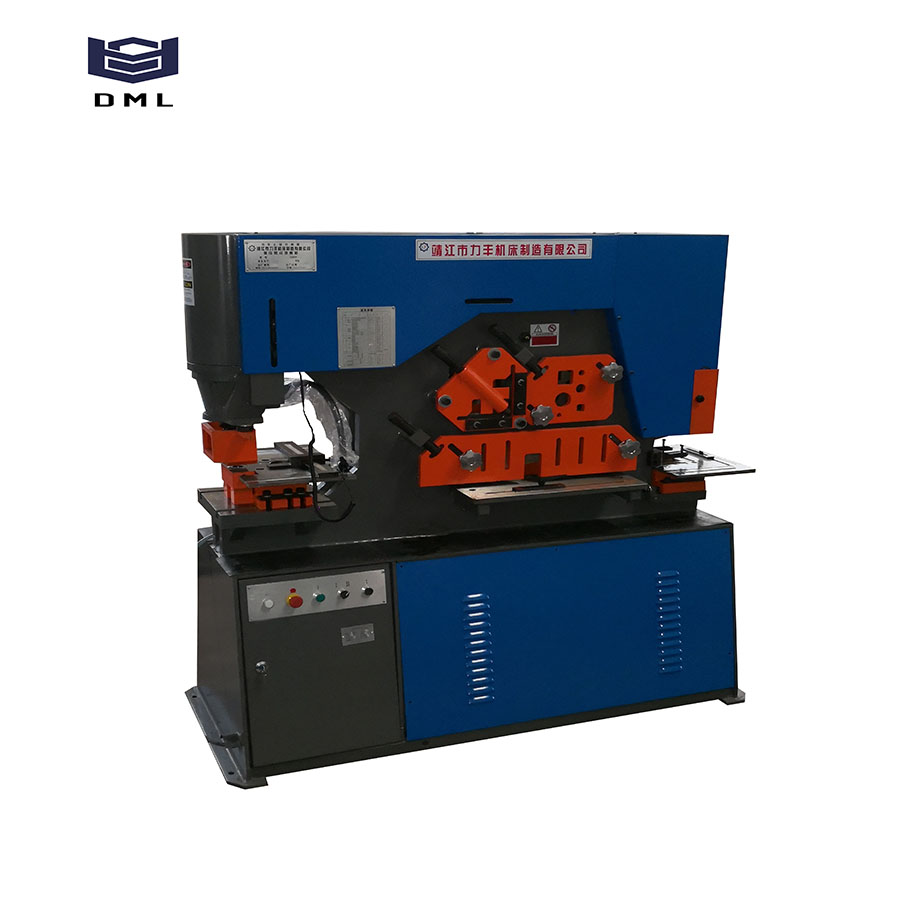

Hydraulic Embroidery Ironworker Machine

  • Hydraulic Embroidery Ironworker Machine
  • Hydraulic Embroidery Ironworker Machine
  • Hydraulic Embroidery Ironworker Machine
  • Hydraulic Embroidery Ironworker Machine

Hydraulic Embroidery Ironworker Machine

    Packaging: Wooden case packing
    Productivity: 20sets/month
    Brand: DML
    Transportation: Ocean
    Place of Origin: china
    Supply Ability: 240sets/Year
    Certificate: ISO9001
    HS Code: 8462490000
    Port: Shanghai,Qingdao,Ningbo

Basic Info

Model No.: Q35Y-40

Product Description

ironworkers machine

Q35Y Series multi-function Hydraulic Ironworker machine is the latest product of the punching and shearing machine which can cut , punch , notch and bend all kinds of materials such as plate , flat bar , square bar , round bar , equal , angle, channel ,I-beam and so on .
used ironworker for sale craigslist
Q35Y series industrial-grade hydraulic combined punching and shearing machine are designed with multiple functions to save labor, time, energy and cost. This allows Ironworker to meet the diversified needs of the metal fabricating industry. Maximum efficiency and long life is guaranteed by using the latest manufacturing methods, including powerful CAD design, modern production line with CNC equipment and continuous quality control.

3

hydraulic punching and shearing machine description

Q35Y series multi-function hydraulic combined punching and shear function ,Plates, square steel ,round steel, channel steel,angle, steel,I-beam and other kinds of steel shearing ,punching, around the steel ,the preferred cutting machine tools , and 500mm length below the sheet bend. Every component of the machine in a safe ,functional, maintenance, and performance to meet the highest quality requirements.

hydraulic punching and shearing machine details:

Ironworker Punch Press /Ironworker Machine Die /Hydraulic Ironworker for Sale

12

hydraulic punch press features:

1.Punching,

Full range of universal punches and dies are available.
unique style allows for large angle iron punching and large channel punching.
Large viewing window on stripper swing away design for ease of operation.
large two piece gauging table with rulers and stop as standard fittings.
Quick change coupling nut and sleeve for rapid replacement of change.
2.Shearing,
Round and square bar shear has multiple holes for a variety of sizes.
Adjustable hold down device for round/square bar,channel/beam cutting.
Large strong guarding for max safety.
The angle shear has the ability to cut angle at 45°both top and bottom leg.
This gives the operator the ability to make a picture frame corner for perfect welds.
Diamond shaped blade for quality cuts that is minimal material lost and deformity.
Easily adjustable hold-down device for accurate plate cutting.
Large 15″squaring arm with inlaid scale.
Special anti-distorted blade for quality cutting.Lower blade has four usable edges.
There is screw allow for gap adjust no shim needed.
3.Notching,
Unique design allows for cutting of angle and flat bar.
Electrical interlock safety guard and three gauging stops for precise positioning.
The notching section of this hydraulic ironworker is perfect for notching out metal plate,
angle iron and much more.
The notching station also has an oversized table with material stops.
This section of the machine can also be outfitted with the optional vee notcher.
4.Bending,
Also bend the plate below 500mm.
All the components of Machine are of the highest quality in their safety, function, capability and maintenance.


hydraulic punching and shearing machine parameter:


Model

Q35Y-16

Q35Y-20

Q35Y-25

Q35Y-30

Working pressure(KN)

550

750

1200

1400

Max. cuning Thickness(mm)

16

20

25

30

Max. cuning length(mm)

400

480

600

600

Tensile strength of sheet metal (N/mm2

<450

<450

<450

<450

Shear angle(°)

7

8

8

8

Stroke of ram(mm)

80

80

80

80

stroke Times (times/min)

8

8

8

8

Depth of throat(mm)

300

355

400

600

Max .Capacity(mm)

25x16

30x20

35x25

38x28

Main motor(KW)

4

5.5

7.5

11

Packing size (cm)

164x73x177

186x79x190

235x96x209

268x205x230

Net weight (kgs)

1700

2200

4800

6200

Capacity

25x16

30x20

35x25

38x26

Punching (mm)

Stroke Length

80

80

80

80

Throat Depth

305

355

400

600

Working height

1030

1084

1142

1209

Flat Bar

250x16

330x20

300x25

355x30

Shearing (mm)

Alternative

400x8

480x10

600x16

600x20

Blade Length

380

485

620

610

Working Height

890

894

851

897

At 90°cut

125x12

140x12

160x14

180x16

Angle Cuning (mm)

At 45°Mitre

70x10

70x10

70x10

70x10

Working Height

1130

1139

1200

1220

Section Cuning

Round / Square

Bar

45

50

60

65

(mm)

Channel / Beam

130x65

160x88

180x84

200x100

Angle steel

90x12

90x12

90x12

90x12

Thickness

10

13

14

16

Notching (mm)

Width

57

57

57

57

Depth: Vee -Rect.

60-90

60-90

60-90

60-90

Working Height

890

883

886

898


hydraulic punching and shearing machine application:12

4Zzz94



We also deal in other products:high speed Hydraulic ironworker,quality Shearing machine,,high speed Plasma cutting machine,Cnc Laser Cutting Machine, Hydraulic Press Brake Machine.Hydraulic press machine,Pipe punching machine and so on .A variety of choices to make your work easier and faster
