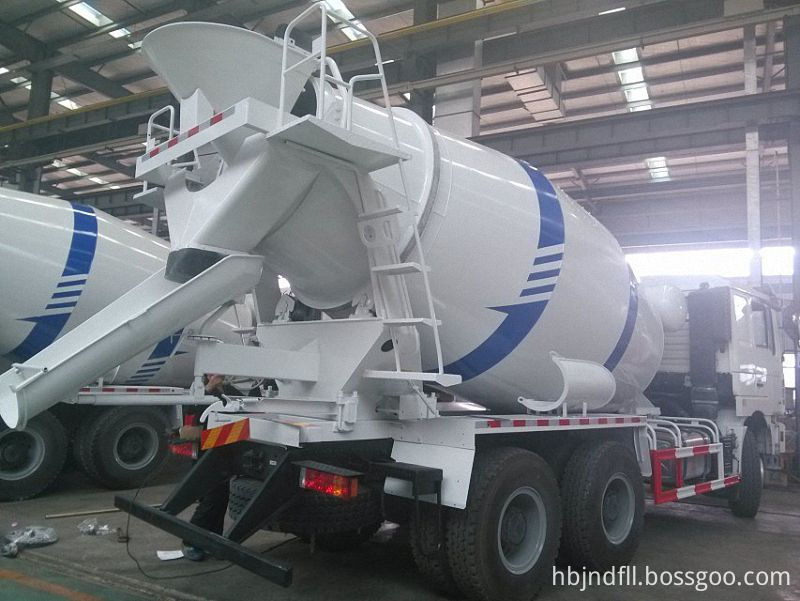

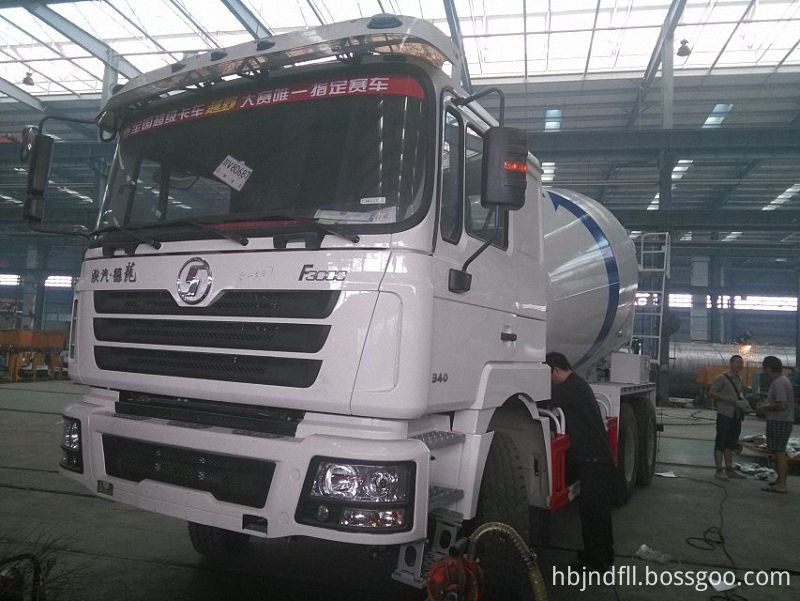

SHACMAN portable concrete mixers machine for sale

  • SHACMAN portable concrete mixers machine for sale
  • SHACMAN portable concrete mixers machine for sale
  • SHACMAN portable concrete mixers machine for sale
  • SHACMAN portable concrete mixers machine for sale

SHACMAN portable concrete mixers machine for sale

    Payment Type: L/C,T/T,D/P,Paypal,Money Gram,Western Union
    Terms of Trade: FOB,CFR,CIF,FCA,CPT
    Min. Order: 1 Piece/Pieces
    Delivery Time: 20 Days
    Packaging: naked, waxing in bulk ship or Ro-ro shipment
    Productivity: 5000pieces/year
    Brand: JDF
    Transportation: Ocean,Land
    Place of Origin: Hubei, China (Mainland)
    Supply Ability: 200pieces/month
    Certificate: ISO, CCC, CE
    HS Code: 8705309000
    Port: Shanghai,Tianjin,Shenzhen

Basic Info

Model No.: SX5255GJBJN334

Certification: CE, RoHS, CCC, ISO9000

Transmission Type: Manual

Emission Standard: Euro 3

Displacement: 8-10L

Engine Type: 4 Stroke

Payload: >30T

Fuel: Diesel

Drive Mode: 6x4

Maximum Horsepower: 300-400hp

Condition: New

Air Conditioning: Equipped

Brake: Air Brake

Cabin: Straight Head ,1 Rows With Bed

Max Speed (km/h): 90

Rating Mass(kg): 11670

Full Mass(kg): 25000

Outline Size(L×W×H) (mm): 8630×2500×3820

Horse Power(HP): 270

Displacement(ML): 9726

Tire Numbers: 10

Wheelbase(mm): 3825+1350

Product Name: SHACMAN Portable Concrete Mixers Machine For Sale

Mixer Truck Volume(m3): 6

Product Description

The concrete mixer truck is just made up of the second class chassis and cement mixing transporting device,etc. The special devices of the mixer truck are PTO, the front and rear brackets of the mixing drum, reducer, hydraulic system, mixing drum, operation mechanism, cleaning system, etc. the working principal of the mixer truck is using the PTO take the power of the chassis, and also drive the variable stroke pump of the hydraulic system , changing the mechanical energy into hydraulic energy then transfer to the motor, and the motor drive the reducer, the reducer drive the mixing device, then mixing the cement, etc.

Cement Mixer Truck 82

Product name Shacman Delong F2000 Euro 3 6*4 concrete mixer truck
Produce model SX5255GJBJN334
Rated mass(Kg) 11670
Curb mass(Kg) 13200
Total mass(Kg): 25000
Overall dimension
(mm)
Length 8630
Wide 2500
High 38200
Mixer drum parameters
Drum volume(m3) 6
Drum speed(rpm) 0-14,0-16
Drum slope angle(.) 12,15
Driving system Reducer Germen, Italian original imported
Pump
Hydraulic circuit
Water system Water tanker volume(L) 230,340,450
Chassis parameters Wheelbase(mm) 3350+1350
Front suspension 1525
Rear suspension 2405
Max speed 90
Clutch ∮430mm flim clutch
Transmission Fastgear F9 transmission
Steering German ZF technical
Front brdge MAN technical
7.5ton
Rear bridge Hande 13ton Steyr strong truck bridge
Tyre 12.00-20 nylon tyre (can choose 11.00-20,11.00R20,12.00R20)
PTO type Take power off from the rear of engine flywheel
Driver cab Delong Flat head single row and a half sleeper
Chassis model SX5255GJBJN334
Engine Engine model WP10.270N ,270HP
RATED power
(ps/rpm)
270/1900,
Max torsion
(N.m/rpm)
1270/1200-1500,1390/1200-1500
Fuel system
German BOSCH electronic control high pressure common rail


Cement Mixer Truck 63Cement Mixer Truck 83


First, large volume design for the mixing drum, making the mixing drum with large loading space and mixing space, etc. avoiding the leakage when climbing.

Second, the mixer blades are manufactured by the high strength and abrasion-resisting alloy steel QSTE420TM, the abrasion ability is about 40Mn to 48Mn, one-formed casting.

Third, the mixing drum adopts integrated automatic welding( making sure the welding quality); the mixer drum adopts shot blasting and anti-rusty treatment, long the mixer truck lifetime; the mixer drum is processed by the large lathe(making sure the concentricity, and discharging evenly, the resident is zero)


Fourth, inlet bucket and the movable outlet bucket installed chute liners, improves the lifetime.

Fifth, the mixer truck with low center of gravity, making the mixer truck driving safe and reliable.
