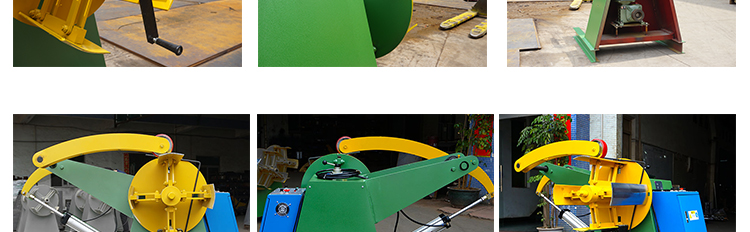

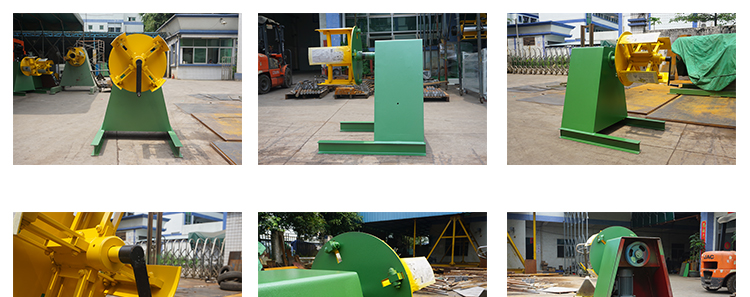

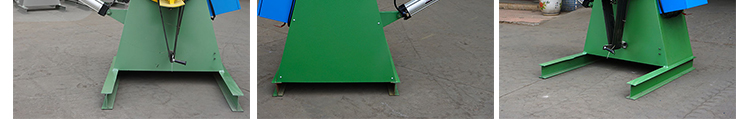

Single Head Coiled Strip Uncoiler For Feeding Coil

  • Single Head Coiled Strip Uncoiler For Feeding Coil
  • Single Head Coiled Strip Uncoiler For Feeding Coil
  • Single Head Coiled Strip Uncoiler For Feeding Coil

Single Head Coiled Strip Uncoiler For Feeding Coil

    Payment Type: L/C,T/T
    Terms of Trade: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 15 Days
    Packaging: 1.Outside package: Standard export wooden cases 2. Inner package: Stretch film
    Productivity: 50 sets per month
    Brand: Henli
    Transportation: Ocean,Land
    Place of Origin: China(Mainland)
    Supply Ability: 50 sets per month
    Certificate: ISO9001:2008, CE certification
    Port: Shenzhen,Ningbo,Shanghai

Basic Info

Model No.: MT-800

Feeding Speed: 15M/MIN

Materual I.D.(mm): 450-530

Material O.D.(mm): 1200

Motor(HP): 2

Name: Coil Cradle( Uncoiler ) Suitable For All Kinds

Coil Expansion: Manual/Hydraulic

Material Weight(kg): 3000

Material Width(mm): 800

Motor (HP): 3

Product Description

Products Description

WELCOME ODM/ OEM ORDER/ VISIT OUR FACTORY

Description 0912 01Description 0912 02

Uncoiler is suitable for all kinds of coil material feeding, no matter "COVAR" alloy or other pure material. ...works together with the straightener is normal; non-motive style is available as long as you need. The maximum load is 15 ton. And the m aximum material width is 1600mm. Uncoilers are always our best-sellers because many customers order most, which made us design more and more good-look and high-quality uncoilers for all of our clients. The special equipment (selective) has material pressing arm, oil pressure expansion style, oil pressure feeding device and motor adopted speed adjustable style. These special equipment will cost more, and please send inquiry to let us choose the most suitable selective for you~

I. BASIC PARAMETERS

Model # MT- 200 MT-300 MT-400 MT-500 ... MT-1600
Coil sheet Width (mm) 200 300 400 500 ... 1600
Coil Weight (Max. Kg) 500-800 800-1000 1000-2000 2000-3000 ... 8-15
Coil Inner D. (mm) 450-530 450-530 450-530 450-530 ... 450-530
Coil Outer D. (mm) 1200 1200 1200 1200 ... 1200
Uncoiling Speed (m/min.) 15 15 15 15 ... 15
Shape D. (m) 0.9x0.9x1.2 0.9x1.0x1.2 1.2x1.3x1.3 1.4x1.5x1.4 ... 3.0x2.2x2.0
G.W. (Kg) 500 550 800 900 ... 4000
Uncoiling Type automated automated automated automated ... automated
Expansion Type Manual Manual Manual Manual/ Hydrau. ... Hydraulic
Uncoiling Motor Power 1 HP 1 HP 2 HP 2 HP ... 7.5 HP

Noted: All parameters dispalyed here are refered to the standard model types.

II. Main functions and Equipments.

Htb130 Axegqmejjy0ffq6zddxxavHtb1jpodxwoqmejjy1xaq6assfxarHtb1wkucxwoqmejjy0fpq6atxpxa3

Company Information

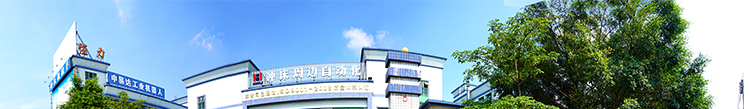

Our factory is located in Dongguan city, which is one of the biggest industrial cities in China. For domestic market, we have more than ten branches and offices fully cover the south and east of China, which are near the sea. And for foreign market, includes South America, Middle East, South Africa, Southeast Asia, now is expanding the market in North America. Most of our clients are terminal clients, we can clearly know their production demands and choose the most suitable machines for them. We also welcome dealers, sincerely hope we can build a long-time and win-win partnership. Welcome you all come to China and visit our factory. What are you waiting for? Go contact us for more!

Description 0912 04Description 0912 05Description 0912 06

*Factory direct


HENLI is the top 10 manufactures in southeast china, more than 100 sets machine and equipment are shipped out from our factory to different countries and areas every month.


*Professional


HENLI have been specializing in press automation since established. We provide full series support from function machine to coil line solution.


*Service support


Free pre sales consulting service including project evaluation and practical suggestion


Free training service from installing to daily maintenance. Full technical support through whole machine life


*Safe Trade


All products showing on site are vaild for online trading, and your order will be protected by Trade Assurance.

Description 0912 08Description 0912 09


Packaging


packaging 20170925

Certifications

Description 0912 10Description 0912 11

Practical Cases Show

Description 0912 13Description 0912 14Description 0912 15
